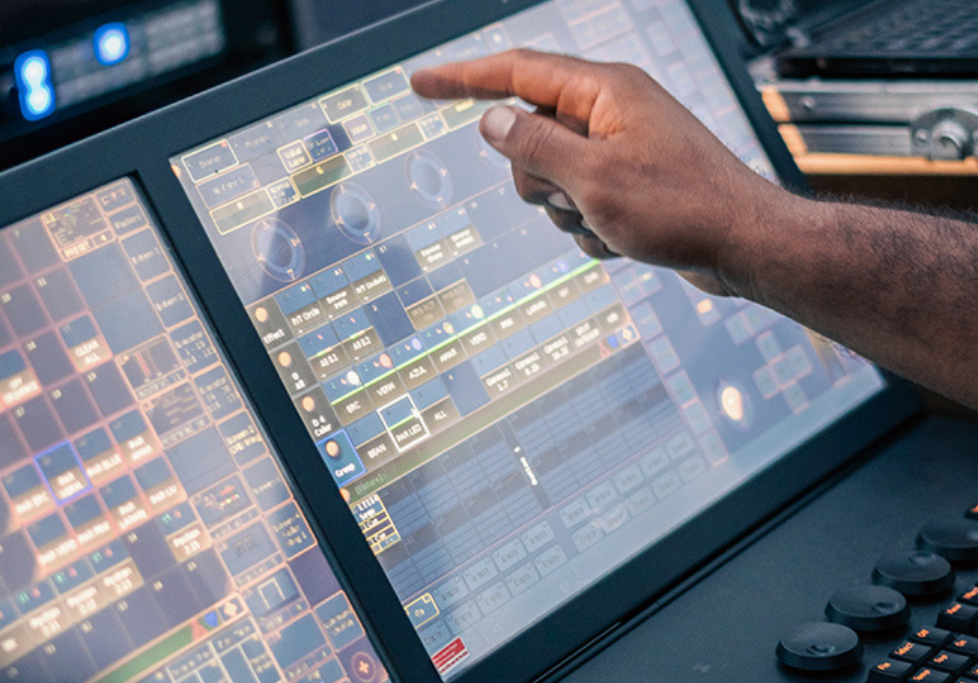

Type C Industrial Monitor
Category : Display
Custom Touch Displays for Lighting Console
TFT LCD : Innolux Panel
Size : 5-inch
Perfect visual experience and sensitive touch
Cover glass with logo printing
Wide-range dimming
Add to Inquiry
Get brochure now
Prev
Back to List
Product Summary
From customized CoF, touch, and LVDS cabling to specialized wide-range dimming and wide operating temperatures, our Display Monitor Module Solutions deliver exceptional visual quality and reliable touch integration for avionics, medical, ATM, and industrial systems.
Product Description
|
LCD Display
|
10.1 inch TFT active matrix panel
|
|
Max. Resolution
|
1280 X 800
|
|
Contrast Ratio
|
1300:01:00
|
|
Brightness
|
300 cd/m² (Typ.) w/o sensor or glass
|
|
Response Time
|
8 ms (Typ.)
|
|
Display Color
|
16.7M colors
|
|
Display Area (H x V)
|
528.2 mm x 297.6 mm
|
|
Viewing Angle (H x V)
|
170-170 (Typ.) w/o sensor or glass
|
|
Backlight Life
|
30,000 hrs (Min.) / LED
|
|
Signal Input
|
Type C or HDMI VGA DVI
|
|
Touch Panel
|
Projected Capacitive Touch
|
|
Touch Panel Interface
|
Type C (Type C to USB-A)
|
|
Power
|
Power Type C or DC 12V by Adapter
|
|
Operating
|
Temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (no condensation) |
|
Dimensions
|
584x356x50 mm
|
|
Case
|
SECC
|
|
Weight (Net)
|
1 kg
|
|
Certification
|
CE
|
Application
Aviation and Military
Transportation
Air Flight Navigation
Point Information/Kiosk
Medical and Healthcare
