21~54.2-in Industrial Monitors
Category : Display

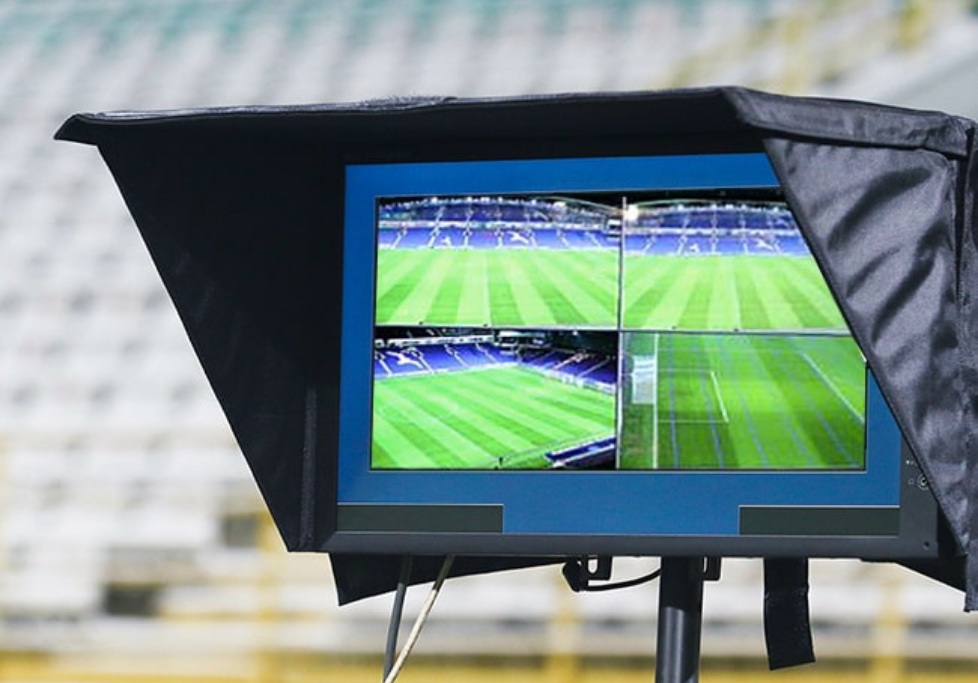

IP-65 Touch LCDs for Video Assistant Referee Systems
TFT LCD : AUO TFT LCD
Size : 24-inch
Brightness : 1,100 nits
Sunlight readable brightness
IP65 rating mechanical design
System integration
Add to Inquiry
Get brochure now
Prev
Back to List
Product Summary
From customized CoF, touch, and LVDS cabling to specialized wide-range dimming and wide operating temperatures, our Display Monitor Module Solutions deliver exceptional visual quality and reliable touch integration for avionics, medical, ATM, and industrial systems.
Product Description
|
Model No.
|
PIM215
|
PIM32
|
PIM42
|
|
Screen Diagonal
|
21.5 inches
|
32 inches
|
42 inches
|
|
Dimension ratio
|
16:9
|
16:9
|
16:9
|
|
Display area (H x V)
|
476.64 mm x 268.11 mm
|
698.4 mm x 392.58 mm
|
930.24 mm x 523.26 mm
|
|
Pixel pitch (H x V)
|
0.24825 mm x 0.24825 mm
|
0.36375 mm x 0.36375 mm
|
0.4845 mm x 0.4845 mm
|
|
Resolution
|
1920 x 1080 (Full HD)
|
1920 x 1080 (Full HD)
|
1920 x 1080 (Full HD)
|
|
Contrast Ratio
|
1000 : 1 (typ.)
|
5000 : 1 (typ.)
|
4000 : 1 (typ.)
|
|
Display Colors
|
16.7M colors
|
16.7M colors
|
16.7M colors
|
|
Brightness
|
300 nits (typ.)
|
450 nits (typ.)
|
450 nits (typ.)
|
|
Viewing Angle
|
170 (H) / 160 (V)
|
178 (H) / 178 (V)
|
178 (H) / 178 (V)
|
|
Response Time (ms)
|
5 ms (typ.)
|
6.5 ms (typ.)
|
6.5 ms (typ.)
|
|
IO Ports
|
15 pin D-SUB / DVI
|
15 pin D-SUB / RCA / HDMI
|
15 pin D-SUB / DVI
|
|
Power Consumption
|
13.44 W (typ.)
|
40.58 W (typ.)
|
42.14 W (typ.)
|
|
Control Button
|
5 Keys
|
5 Keys
|
5 Keys
|
|
Optional Video Input
|
Yes
|
Yes
|
Yes
|
|
Optional DVI, HDMI Input
|
Yes
|
Yes
|
Yes
|
|
Optional Touch Screen
|
Capacitive Touch
Resistive Touch ; SAW |
Capacitive Touch ; IR
|
Capacitive Touch ; IR
|
Application
Aviation and Military
Transportation
Air Flight Navigation
Point Information/Kiosk
Medical and Healthcare
