High Brightness Open Frame Displays
Category : Display
Sunlight Readable ATM Displays
TFT LCD : Mitsubishi Panel
Size : 19-inch
Brightness : 1,200 nits
Projected capacitive touch panel
Optical enhancements with AG and AR coating
Brightness enhancements through optical films and backlight upgrades
Robust design with an extended operating temperature range
Add to Inquiry
Get brochure now
Prev
Back to List
Product Summary
From customized CoF, touch, and LVDS cabling to specialized wide-range dimming and wide operating temperatures, our Display Monitor Module Solutions deliver exceptional visual quality and reliable touch integration for avionics, medical, ATM, and industrial systems.
Product Description
|
Model No.
|
PFD-15
|
PFD-17
|
PFD-19
|
|
Screen Diagonal
|
15 inch
|
17 inch
|
19 inch
|
|
Max Resolutions
|
XGA (1024 X 768)
|
SXGA (1280 X 1024)
|
SXGA (1280 X 1024)
|
|
Active Area (mm)
|
304.128 (H) x 228.096 (V)
|
337.92 (H) x 270.336 (V)
|
376.32 (H) x 301.056 (V)
|
|
Support Color
|
262K(6-bit) / 16.2M(8-bit) colors
|
16.7M colors (RGB 6-bit + Hi_FRC ) colors
|
16.7M colors (RGB 6-bit + Hi_FRC ) colors
|
|
Pixel Pitch
|
0.297 (H) x 0.297 (V) mm
|
0.264 (H) x 0.264 (V) mm
|
0.294 (H) x 0.294 (V) mm
|
|
Luminance
|
1,000 nits
|
1,000 nits
|
1,500 nits
|
|
Contrast Ratio
|
2000 : 1 (Typical )
|
2000 : 1 (Typical )
|
3000:1
|
|
Scan frequency
|
Horizontal: 30 to 80 KHz
Vertical : 50 to 75 Hz |
Horizontal: 30 to 80 KHz
Vertical : 50 to 75 Hz |
Horizontal: 30 to 80 KHz
Vertical : 50 to 75 Hz |
|
Viewing Angle
|
160°/140° (H/V)
|
170°/165° (H/V)
|
160°/160° (H/V)
|
|
Response Time
|
8 ms (tf/tr)
|
5 ms (tf/tr)
|
5 ms (tf/tr)
|
|
Input Signal
|
R/G/B Analog
|
R/G/B Analog
|
R/G/B Analog
|
|
Signal type
|
15 Pin D-sub VGA only
|
15 Pin D-sub VGA only
|
15 Pin D-sub VGA only
|
|
15 Pin D-sub VGA only
|
DDC 2B
|
DDC 2B
|
DDC 2B
|
|
OSD Controls/Button
|
Power, Auto, Menu / Enter, Up, Down
|
Power, Auto, Menu / Enter, Up, Down
|
Power, Auto, Menu / Enter, Up, Down
|
|
Power Consumption
|
30 W (Max.) /Standby under 2W
|
35 W (Max.) /Standby under 2W
|
30 W (Max.) /Standby under 2W
|
|
Power Management
|
VESA DPMS
|
VESA DPMS
|
VESA DPMS
|
|
Power Supply
|
Input : DC 12V/3.0A
|
Input : DC 12V/4.0A or DC 24V(Options)
|
Input : DC 12V/4.0A or DC 24V(Options)
|
|
Signal Options
|
VGA + DVI or VGA + Video + S-Video or VGA+HDMI Input
|
VGA + DVI or VGA + Video + S-Video or VGA+HDMI Input
|
VGA + DVI + HDMI / VGA + Video + S-Video Composite Input
|
|
Touch Screen Options
|
5W Resistive Antiglare / Surface Capacitive
|
5W Resistive Antiglare / Surface Capacitive
|
5W Resistive Antiglare / Surface Capacitive
|
|
Mechanical
|
|||
|
Construction
|
Metal
|
Aluminum & Varnish
|
Aluminum & Varnish
|
|
Front Bezel
|
Optional
|
Optional
|
Optional
|
|
Dimensions
|
388.7(W) x 300 (H) x 53 (D) (mm)
|
482 (W) X 308 (H) x 54 (D) (mm)
|
482 (W) X 308 (H) x 54 (D) (mm)
|
|
Mounting Options
|
Rear Mount, Wall Mount
|
Panel Mount, Rear Mount, Wall Mount
|
Panel Mount, Rear Mount, Wall Mount
|
|
Weight
|
4 KGs
|
5.5 KGs
|
5.5 KGs
|
|
Environmental
|
|||
|
Operating Temperature
|
-20°C~70°C
|
-20°C~70°C
|
0°C~50°C
|
|
Storage Temperature
|
-30°C~85°C
|
-30°C~80°C
|
-20°C~60°C
|
|
EMC Approved
|
CE , FCC
|
CE , FCC
|
CE , FCC
|
|
Relative Humidity
|
Less than 85%
|
Less than 85%
|
Less than 85%
|
|
RoHS Compliance
|
RoHS Compliance
|
RoHS Compliance
|
RoHS Compliance
|
|
Drawing
|
Dimensions
I/O |
-
|
-
|
Application
Aviation and Military
Transportation
Air Flight Navigation

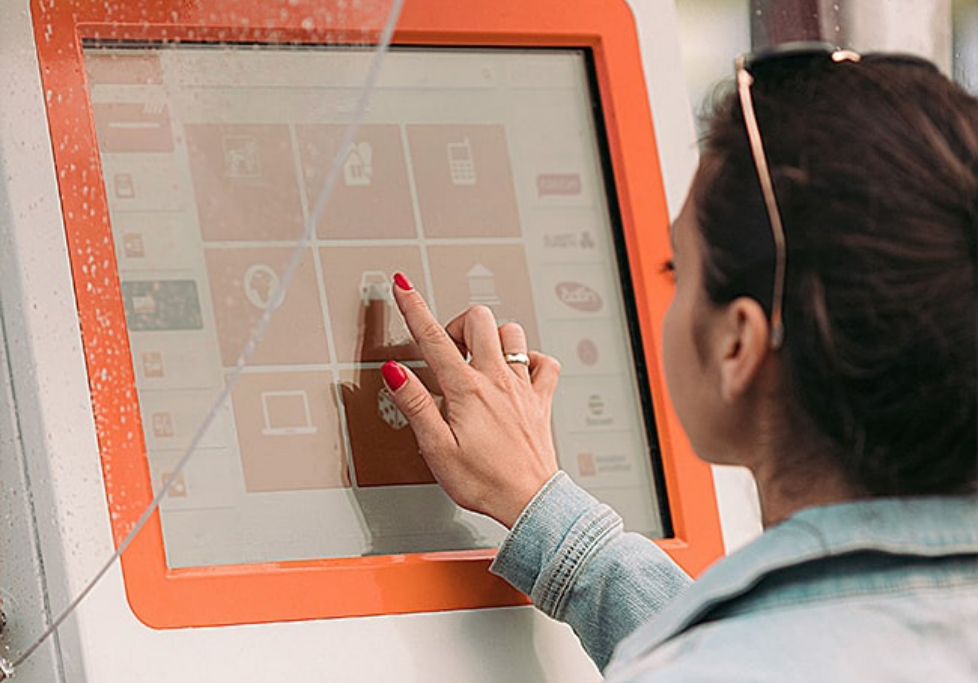

Point Information/Kiosk
Medical and Healthcare
