12~19-in Industrial Automation Displays
Category : Display

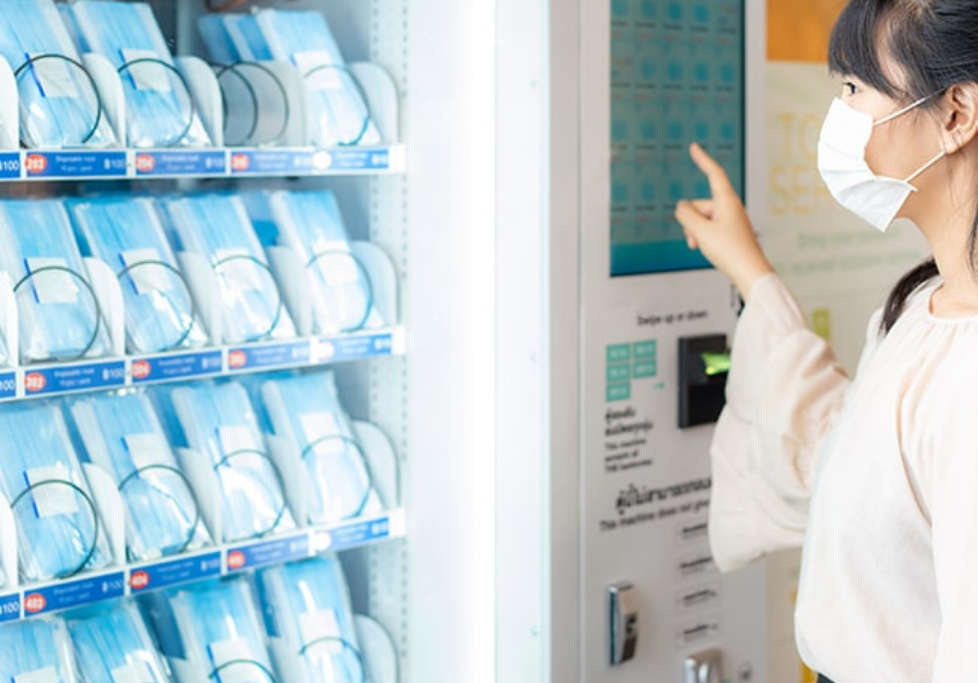

Smart Vending Machine Displays
TFT LCD : AUO TFT LCD
Size : 5-inch
Brightness : 350 nits
Projected capacitive touch panel
AR coating glass
Custom mechanical design
System integration
Custom cables for touch and display
Add to Inquiry
Get brochure now
Prev
Back to List
Product Summary
From customized CoF, touch, and LVDS cabling to specialized wide-range dimming and wide operating temperatures, our Display Monitor Module Solutions deliver exceptional visual quality and reliable touch integration for avionics, medical, ATM, and industrial systems.
Product Description
|
Model No.
|
PIAD121
|
PIAD15
|
PIAD17
|
PIAD19
|
|
Screen Diagonal
|
12.1 inches
|
15 inches
|
17 inches
|
19 inches
|
|
Dimension ratio
|
4:3
|
4:3
|
4:3
|
4:3
|
|
Display area (H x V)
|
245.76 mm x 184.32 mm
|
304.128(H) x 228.096 mm
|
337.920 mm x 270.336 mm
|
376.32 mm x 301.056 mm
|
|
Pixel pitch (H x V)
|
0.24 mm x 0.24 mm
|
0.297 mm x 0.297 mm
|
0.264 mm x 0.264 mm
|
0.294 mm x 0.294 mm
|
|
Resolution
|
1024 x 768 (SVGA)
|
1024 x 768 (XGA)
|
1280 x 1024 (SXGA)
|
1280 x 1024 (SXGA)
|
|
Contrast Ratio
|
700 : 1 (typ.)
|
500 : 1 (typ.)
|
1000 : 1 (typ.)
|
1300 : 1 (typ.)
|
|
Display Colors
|
262K / 16.2M colors
|
262K / 16.2M colors
|
16.7M colors
|
16.7M colors
|
|
Brightness
|
500 nits (typ.)
(LED Backlight) |
250 nits (typ.)
|
250 / 350 nits (typ.)
|
250 / 300 nits (typ.)
(LED Backlight) |
|
Viewing Angle
|
160 (H) / 160 (V)
|
140 (H) / 130 (V)
|
170 (H) / 170 (V)
|
160 (H) / 170 (V)
|
|
Response Time (ms)
|
35 ms (typ.)
|
12 ms (typ.)
|
5 ms (typ.)
|
5 ms (typ.)
|
|
IO Ports
|
15 pin D-SUB
|
15 pin D-SUB
|
15 pin D-SUB
|
15 pin D-SUB / RCA
|
|
Power Consumption
|
11.45 W (typ.)
|
12 W (typ.)
|
10.8 W (typ.)
|
17 W (typ.)
|
|
Control Buttom
|
5 Keys
|
5 Keys
|
5 Keys
|
5 Keys
|
|
Optional Video Input
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Optoinal DVI, HDMI Input
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Optional Touch Screen
|
Capacitive Touch
Resistive Touch |
Capacitive Touch
Resistive Touch ; SAW |
Capacitive Touch
Resistive Touch ; SAW |
Capacitive Touch
Resistive Touch ; SAW |
Application
Aviation and Military
Transportation
Air Flight Navigation
Point Information/Kiosk
Medical and Healthcare
