7~10.4-in Healthcare Displays
Category : Display
Medical Touch LCD Displays
TFT LCD : 4-inch TFT LCD
Brightness : 350 nits
Resistive touch panel with metal bracket
Chemically strengthened glass with custom printing
Air bonding between touch panel and LCD module
Custom cables for CoF and LVDS display
3 V display voltage (typical 3.5V)
Eliminated EMI noise
Add to Inquiry
Get brochure now
Prev
Back to List
Product Summary
From customized CoF, touch, and LVDS cabling to specialized wide-range dimming and wide operating temperatures, our Display Monitor Module Solutions deliver exceptional visual quality and reliable touch integration for avionics, medical, ATM, and industrial systems.
Product Description
|
Model No.
|
PHD070
|
PHD084
|
PHD10
|
PHD104
|
|
Screen Diagonal
|
7 inches
|
8.4 inches
|
10 inches
|
10.4 inches
|
|
Dimension ratio
|
5:3
|
4:3
|
5:3
|
4:3
|
|
Display area (H x V)
|
152.40 mmx 91.44 mm
|
170.40 mmx 127.8 mm
|
222.72 mm x 125.88 mm
|
211.2 mm x 158.4 mm
|
|
Pixel pitch (H x V)
|
0.1905 mm x 0.1905 mm
|
0.213 mm x 0.213 mm
|
0.2175 mm x 0.2088 mm
|
0.264 mm x 0.264 mm
|
|
Resolution
|
800 x 480 (WVGA)
|
800 x 600 (WVGA)
|
1024 x 600
|
800 x 600 (SVGA)
|
|
Contrast Ratio
|
1000 : 1 (typ.)
|
600 : 1 (typ.)
|
400 : 1 (typ.)
|
500 : 1 (typ.)
|
|
Display Colors
|
262K / 16.2M colors
|
262K / 16.2M colors
|
262K colors
|
262K / 16.2M colors
|
|
Brightness
|
400 nits (typ.)
(LED Backlight) |
250 / 450 nits (typ.)
(LED Backlight) |
200 (typ.) nits
(LED Backlight) |
230 (typ.) nits
(LED Backlight) |
|
Viewing Angle
|
160(H) / 160(V)
|
160(H) / 140(V)
|
90(H) / 50(V)
|
160(H) / 130(V)
|
|
Response Time (ms)
|
30 ms (typ.)
|
30 ms (typ.)
|
16 ms (typ.)
|
35 ms (typ.)
|
|
IO Ports
|
15 pin D-SUB / RCA
|
15 pin D-SUB
|
15 pin D-SUB / RCA
|
15 pin D-SUB / RCA
|
|
Power Consumption
|
5.15 W (typ.)
|
4.06 W (typ.)
|
6.65 W (typ.)
|
7.7 W (typ.)
|
|
Control Buttom
|
5 Keys
|
5 Keys
|
5 Keys
|
5 Keys
|
|
Optional Video Input
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Optoinal DVI, HDMI Input
|
No
|
Yes
|
No
|
Yes
|
|
Optional Touch Screen
|
Resistive Touch
|
Resistive Touch
|
Resistive Touch
|
Capacitive Touch
Resistive Touch |
Application
Aviation and Military
Transportation
Air Flight Navigation
Point Information/Kiosk

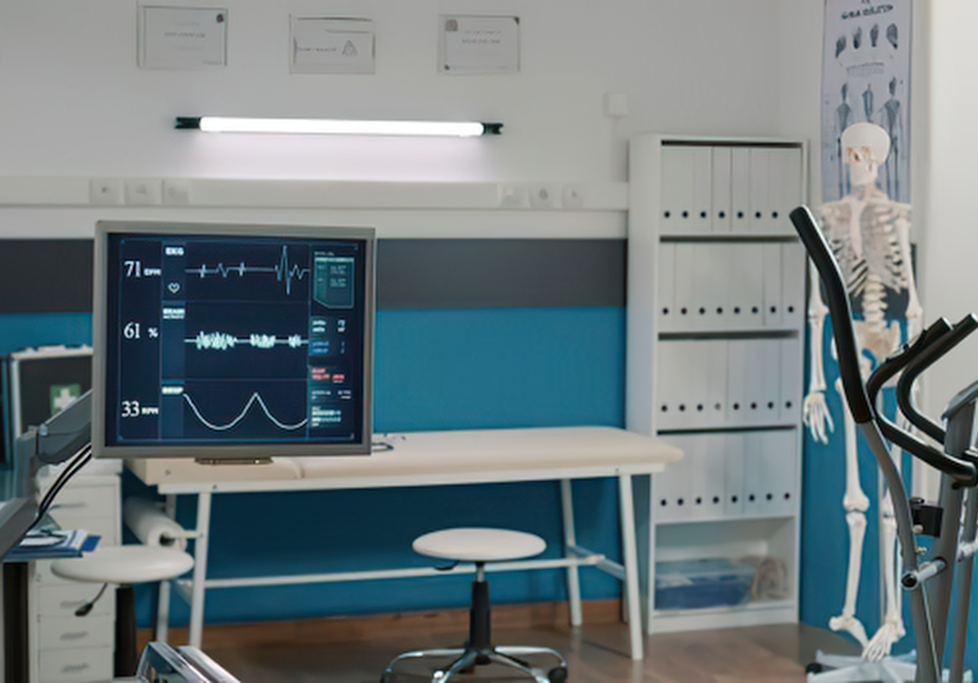

Medical and Healthcare
