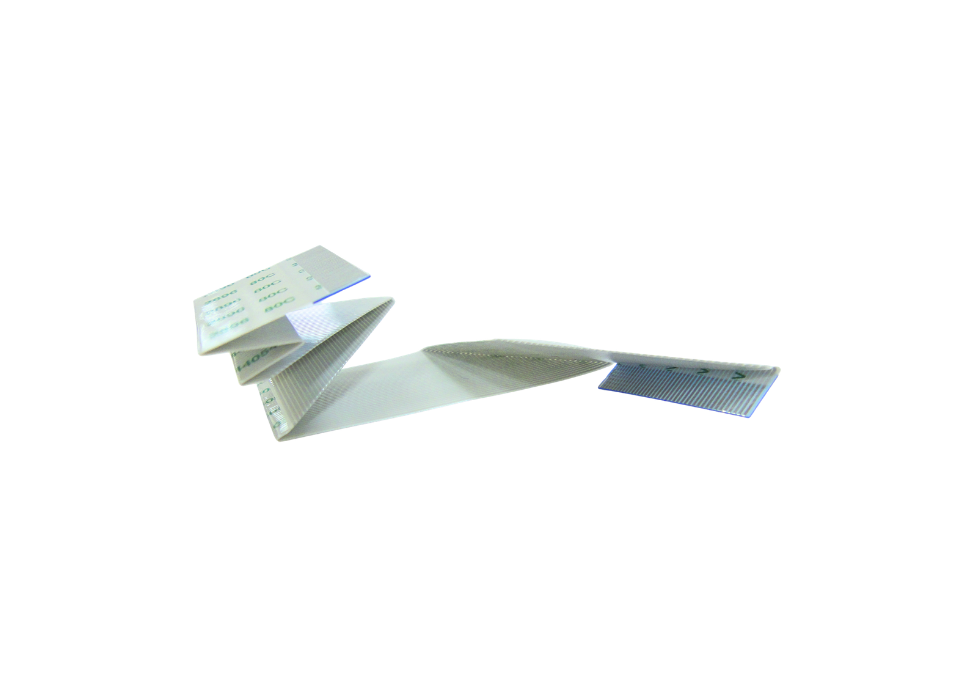

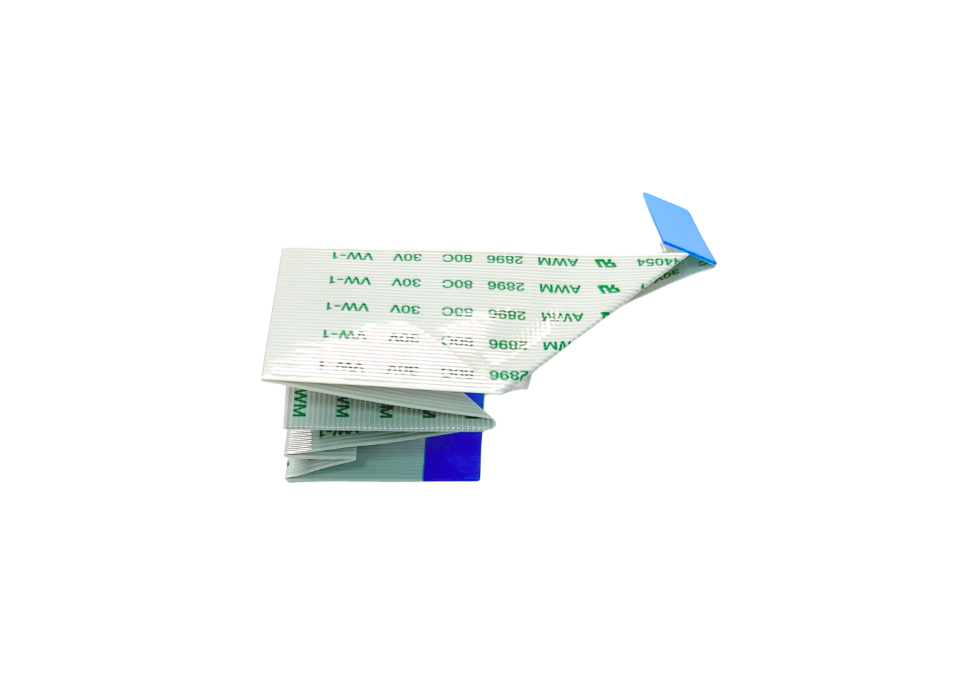

FFC Folding Cable

Category : Flexible Flat Cable (FFC)

Cable : FFC UL2896, 40pin, pitch: 0.5mm

Folded : 10 times

Add to Inquiry

Get brochure now

Back to List Next

Product Summary

Highly customizable Flexible Flat Cables (FFCs) provide versatile, space-saving interconnect solutions. Featuring 28AWG/30AWG wire types, they offer completely customizable lengths and pin configurations ranging from 2 to 50 pins (and up to 104 pins) with pitches between 0.3mm and 2.54mm to fit precise layout requirements.

Product Description

Product	FFC Cable
Pin	4P~80P
Pitch	0.5/1.0/1.25/1.27/2.54mm
Margin	M±0.10
Cable thickness	T±0.05
Conductor Strip Length	4.0±1.0 or custom made
Supporting Tape Length	8.0±2.0 or custom made
Conductor thickness	0.10±0.005
Conductor Width	0.65±0.03
Impedance	50/90/100 Ohm
Conductor Material	Tinned Copper
Supporting Tape Material	PET
Shielding	Single or double side

Application

Consumer Electronic

Communication Equipment

Automotive Electronics

Industrial Control

Smart Home

Embedded System

Industrial / Automation

Automotive / LEV

Multimedia

Display
